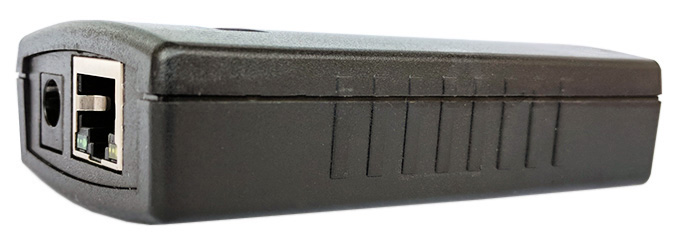

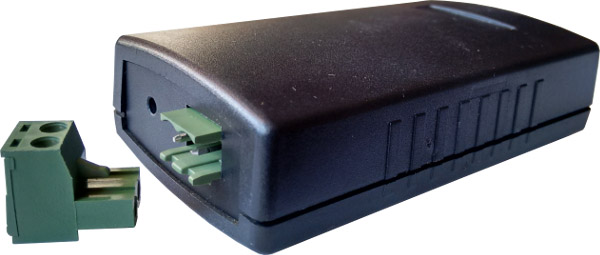

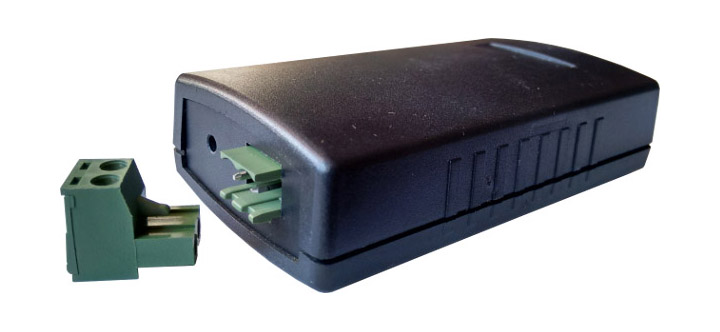

TB-260

Ethernet thermometer for PT100 sensor

TB-260 is an ethernet thermometer for PT100 sensor for measurement of temperature in the range from -200 to +850 °C. As many of ours high-end devices, it supports data logging for huge amount of records, android push notifications, email messages, SNMP traps and graphical data representation.

no maintenance needed

Fast and easy installation

All you need to install and run our devices is your 2 hands and 10 seconds time. Just plug in the ethernet cable and the power jack and you're ready to start. So easy as that!

No unnecessary software

Platform independent

You're using a desktop PC, laptop, tablet or smartphone with Windows, Linux, iOS or Android. That doesn't matter! All you need is just a modern WEB browser and an internet connection.

local data logging

Graphical data representation

Many products from other companies require additional software installation that allows data logging and visualisation. Our products doesn't need this - they have all what's needed onboard!

Modern hardware

Performance and reliability

All of our products are designed and manufactured on the basis of modern and advanced electronic components from leading manufacturers in this field - Microchip, Atmel, Maxim Integrated, On Semiconductor, Texas instruments and others.

Network connectivity

Access from around the world

No matter if you're at home, at the office or on vacation, your devices are on just one click distance. All you need is a PC, smartphone or tablet with an internet connection. Nothing else!

Features

Comparison table
  • 10/100Base-T ethernet interface
  • input for 1 PT100 sensor 1
  • measures temperature from -200°C to +850°C 2
  • measurement resolution 0.01°C
  • ±0.1°C accuracy 3
  • time-differential measurement of the temperature (value change per given interval)
  • graphical representation of the maasured value  (demo)
  • email 4, SNMP traps and Android push notifications on out-of-range events
  • 3 different notification ranges - Alert, Warning, Critical
  • supports TCP/IP, ICMP, ARP, UDP, DNS, TLS, HTTP, SMTP and DHCP network protocols
  • integrated WEB server
  • integrated SNMP v2c server + traps
  • integrated TCP server for remote data logging
  • integrated Modbus/TCP Slave for industrial & building automation systems
  • integrated MySQL client for custom data logging  (demo /flash needed/)
  • integrated HTTP client for custom client/server applications
  • supports data acquisition from the WEB server in XML and JSON format
  • free push notifications for Android smartphones and tablets
  • volatile data history for the last 24 hours and the last 7 days
  • data logging and visualisation for ~260.000 records in internal non-volatile memory (demo)
  • supports firmware upgrade from the WEB server
  • onboard real time clock with 3V lithium backup battery
  • included 5V power adapter
  • password protected configuration
  • easy configuration
  • compact size (90 x 50 x 25 mm)
  • 3 years warranty
  •
  • 1 the device is sold without a sensor
  • 2 absolute measurement range, the real one depends on the sensor used
  • 3 device's accuracy, the total accuracy depends mostly on the accuracy of the sensor used
  • 4 supports up to 2048-Bit TLS_RSA_WITH_AES_256_CBC_SHA encryption

Applications

  • industrial & building automation systems
  • HVAC & refrigeration systems
  • remote data logging and monitoring
  • server rooms and racks monitoring
  • individual client/server applications
  • weather condition monitoring systems
  • fire, alarm and control systems
  • agriculture and livestock breeding
  • chemical industry
  • pharmaceutical industry
  • food industry
  • logistics and warehouses
  • as well as many others...

Order now

1 - 10 198 00
11 + 190 00
  All prices include 20% VAT.
