RZ-05

Online mini UPS

RZ-05 is an online 1 mini UPS with 5V output voltage. Its main purpose is to supply power to the connected devices when the primary power source is down. Depending on the power consumption, the device can provide power from the built-in battery for up to 12 hours. Additionally, it can power more than one consumer, as long as the total power consumption does not exceed its maximum output power.

Order now

Features

  • 3.6V 2200 mАh replaceable lithium-ion battery 18650
  • simultaneously battery charging and powering the connected device
  • seamless transition between power sources without output voltage fluctuations
  • overcurrent, overvoltage, undervoltage and short circuit battery protection
  • PTC resettable fuse against output overcurrent
  • automatic shutdown on battery depletion
  • manual battery disconnect switch
  • LED indication of output power presence and battery charging
  • input and output connectors 5.5 x 2.1 мм, plus in the middle, 20 cm cable length
  • 3 years warranty, battery excluded
  • compact size (89 x 42 x 22 mm)
  •

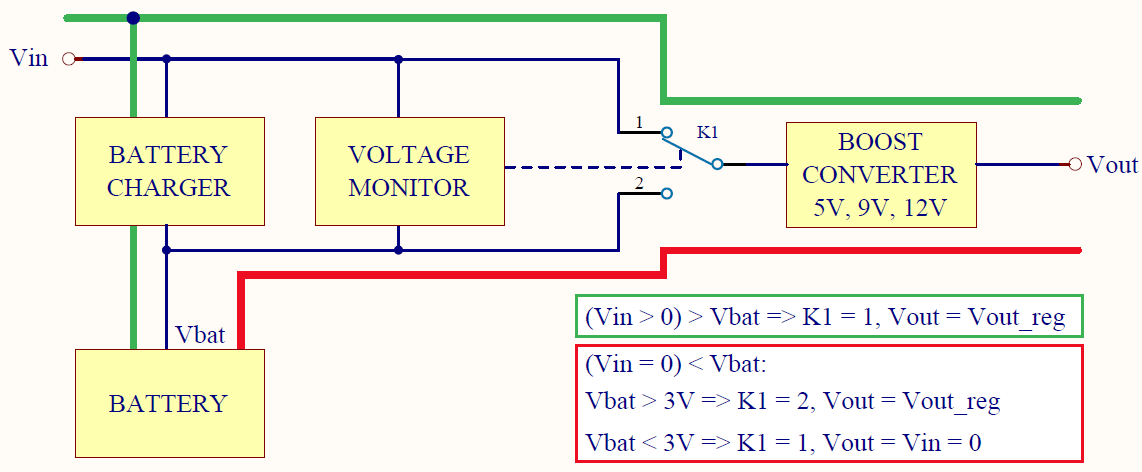

  • 1 online UPS is that kind of UPS, in which the output inverter is always on, no matter the power source

Electrical specifications

Parameter Symbol Conditions Value Units
Input voltage 2 Vin nom 5 V
Inpit power Pin min 4.7 + Pout W
Output voltage 3 Vout Vin < Vout + 0.3 5 ±1% V
Vin > Vout + 0.3 Vin - 0.2
Output current Iout max - AI,CB 1.2 A
max - ED,SA 4 2.5
Output power Pout max 6.0 W
Battery capacity Cbat min / nom 2150 / 2200 mAh
Battery charge current Ichr CC/CV 0.95 A
Battery charge time Tchr Vbat = 3.0V 3 h
On battery run time 5 Tnom Vbat = 4.2V 6…8 h

Applications

  • all of our 5V products without TH-340GB
  • modems, routers, switches or other network equipment
  • IP or analog surveillance cameras
  • GPS, GPRS or similar modules
  • Arduino, Raspberry PI or other embedded devices
  • as well as many other...

Order now
1 - 10 66 00 €
11 + 60 00 €
  All prices include 20% VAT.
